Azure - Random Notes

MongoDB protocol <---> CosmosDB (Core, SQL)
Kafka protocol <-----> Event Hubs (AMQP, HTTP)

Here’s the hierarchy in Kafka:

Cluster

• A Kafka cluster is the whole deployment.
• It’s made of multiple brokers (servers).
• All brokers together form the cluster and share metadata about topics, partitions, leaders, replicas, etc.
• Example: A production Kafka setup might have 10 brokers forming one cluster.

Topic

• A topic is a logical category or stream of messages (like a table in a DB).
• Producers write messages into a topic; consumers read from it.
• Each topic is split into partitions for scaling.
• Example: Topic = orders, where all order events are stored.

Partition

• A partition is a single, ordered log inside a topic.

• Each message in a partition has a unique offset (sequential ID).

• Ordering is guaranteed only within a partition, not across all partitions in a topic.

• Each partition has:

  • One leader replica (handles reads/writes).
  • Zero or more follower replicas (sync from leader for fault tolerance).

• Example: Topic orders with 6 partitions means there are 6 independent logs, possibly spread across different brokers.

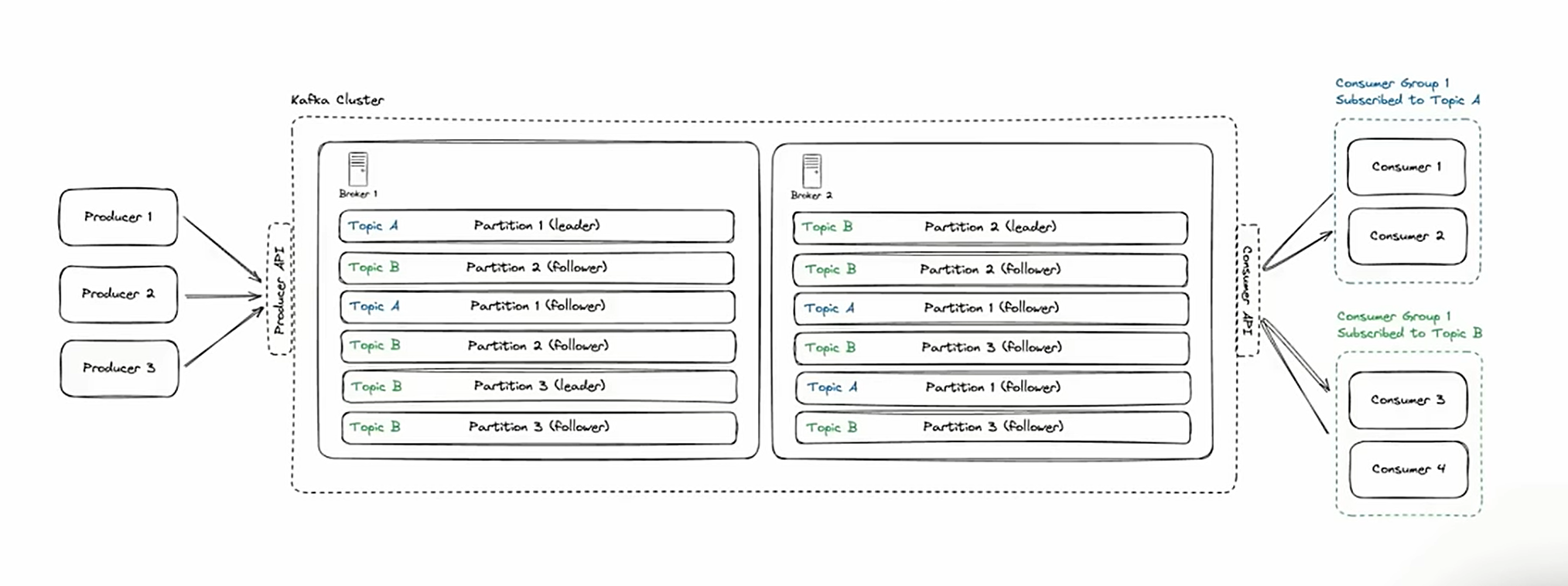

Hierarchy

Cluster
 └── Brokers (servers)
      └── Topics (logical streams, e.g., orders, payments)
           └── Partitions (ordered logs, unit of scaling & replication)

👉 In short:

• Cluster = all brokers.
• Topic = logical stream/category.
• Partition = actual log slice where messages live.

Azure Event Hubs is basically Kafka-as-a-service on Azure.
In fact:

• It’s conceptually very close to Apache Kafka:

  • Partitioned, high-throughput event ingestion

  • Producers push data in

  • Consumers read data out with offsets & checkpoints

  • Retention window (can replay old data within that window)

• Microsoft even provides a Kafka-compatible endpoint in Event Hubs.
  👉 Meaning: You can point your Kafka producers/consumers at Event Hubs without running your own Kafka cluster.

So:

• Event Hubs ≈ Azure’s Kafka (for telemetry + streaming pipelines)

• Event Grid ≈ Azure’s Pub/Sub fabric (for lightweight event-driven workflows)

⚡ Example:

• If you’re building an IoT telemetry pipeline, you’d use Event Hubs (like Kafka).

• If you want to trigger a Function when a blob is created, you’d use Event Grid.
